About

The import of CSV file with Studio

Articles Related

Format

The format follows the CSV specification which is only an American one with the following characteristics:

• Timestamp format must be yyyy-mm-dd hh:mm:ss[.fffffffff]
• Decimal separator must be a point
• Field separator must be a comma (It can be chosen but the locale has no influence on it)

Steps

• Studio > Show View > Quick View
• Click On Import
• Sap Hana Content > Data From Local File > Next
• Target System > Select > Next

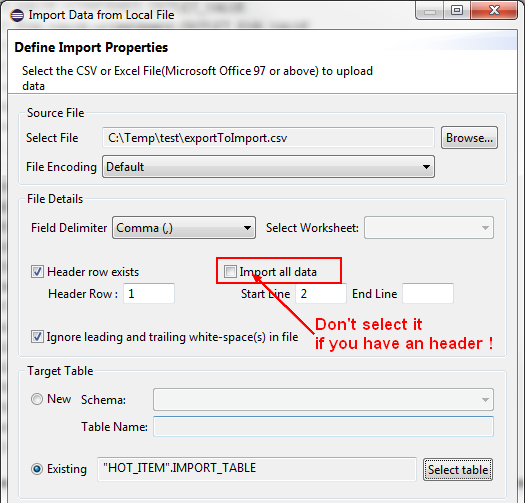

• Import Properties (<note>Don't check the “Import All Data” if you have an header. Otherwise Studio will attempt to load the header also and you can get into troubles. If you have a date column for instance with a text header, the import utility will not recognize a date in you header and will throw an exception (error)</note>

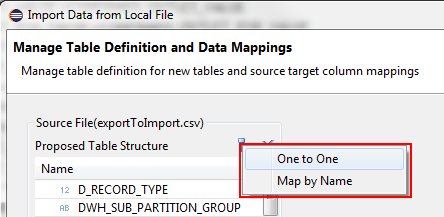

• Manage Table Definitions and Data Mappings: Select the mapping:
  • One by one (Index mapping, the first column in the falt file will be the first column of the table),
  • Map by Name (The column with the same name in the flat file will be mapped with the column of the same name in the table)

• Manage Table Definitions and Data Mappings: Change the data type and others parameters if needed > Next
• Summary Finish

Log

• You can follow the import with the Job Log perspective on the current tab

• With a double click on the row, you get more details:
  • When running

• When finished:

This information is also persist in the history tab.

Documentation / Reference

• http://scn.sap.com/community/hana-in-memory/blog/2014/04/10/tips-for-loading-large-csv-files-to-hana
