Stop the agent process Copy the jar files located in the lib directory of the downloaded files Paste them in the following location. If the ODI agent is a Java application running in WebLogic Server: C:\Oracle\Middleware\user_projects\domains\odiagent\lib. Standalone agent: <install>\odi\agent\lib

• For an agent in a weblogic Server, add this java system property in the setDomainEnv script: JAVA_OPTIONS=-DUseSunHttpHandler=true

set JAVA_OPTIONS=-DUseSunHttpHandler=true

JAVA_OPTIONS=-DUseSunHttpHandler=true
export JAVA_OPTIONS

• Start the agent

You must see in the agent log that the agents process new jars:

*sys-package-mgr*: processing new jar, 'C:\OdiHome\odi\agent\lib\endeca-server-driver.jar'
*sys-package-mgr*: processing new jar, 'C:\OdiHome\odi\agent\lib\endeca_bulk_load-7.6.jar'
*sys-package-mgr*: processing new jar, 'C:\OdiHome\odi\agent\lib\guava-14.0.jar'
*sys-package-mgr*: processing new jar, 'C:\OdiHome\odi\agent\lib\httpclient-4.0.3.jar'
*sys-package-mgr*: processing new jar, 'C:\OdiHome\odi\agent\lib\httpcore-4.0.1.jar'
*sys-package-mgr*: processing new jar, 'C:\OdiHome\odi\agent\lib\log4j-1.2.15.jar'
*sys-package-mgr*: processing new jar, 'C:\OdiHome\odi\agent\lib\slf4j-api-1.7.2.jar'
*sys-package-mgr*: processing new jar, 'C:\OdiHome\odi\agent\lib\slf4j-log4j12-1.7.2.jar'

• Add the following jar in the metadata-import.bat file:

c:\OdiHomeEE\oracle_common\modules\oracle.jps_12.1.2\jps-api.jar;c:\OdiHomeEE\oracle_common\modules\oracle.idm_12.1.2\identitystore.jar

• Start

3.1.0\tools>metadata-import.bat OdiRepository.properties

Loading properties from:
3.1.0\tools\OdiRepository.properties
ODI_MASTER_DRIVER=oracle.jdbc.OracleDriver

ODI_MASTER_URL=jdbc:oracle:thin:@localhost:1521/pdborcl.hotitem.local

ODI_WORK_REP=WORKREP

ODI_MASTER_USER=DEV_ODI_REPO

ODI_SUPERVISOR=SUPERVISOR

Please specify the database user password for the ODI repository database:
Please specify the Work repository login password:
Loading ODI repository configuration complete.
Mar 20, 2014 1:06:46 PM oracle.odi.core.datasource.DataSourceDefinitionUtils createDriverManagerDataSourceDefinition
INFO: New data source: [DEV_ODI_REPO/*******@jdbc:oracle:thin:@localhost:1521/pdborcl.hotitem.local]
Mar 20, 2014 1:06:48 PM oracle.odi.core.datasource.DataSourceDefinitionUtils createDriverManagerDataSourceDefinition
INFO: New data source: [DEV_ODI_REPO/*******@jdbc:oracle:thin:@(description=(address=(host=localhost)(protocol=tcp)(port=1521))(connect_data=(service_name=PDBOR
Mar 20, 2014 1:06:50 PM org.eclipse.persistence.default
INFO: EclipseLink, version: Eclipse Persistence Services - 2.4.2.v20130514-5956486
Mar 20, 2014 1:06:50 PM org.eclipse.persistence.default.connection
INFO: work-session login successful
Mar 20, 2014 1:06:50 PM org.eclipse.persistence.default.connection
INFO: master-session login successful
Mar 20, 2014 1:06:51 PM org.eclipse.persistence.default.connection
INFO:  login successful
Mar 20, 2014 1:06:51 PM oracle.odi.adapter.OdiAdapter refreshRepositorySeededObjects
WARNING: Refreshing static component type cache.
FlexField {Endeca Property IsUnique|ENDECA_PROPERTY_IS_UNIQUE} is added!
FlexField {Endeca Property Display Name|ENDECA_PROPERTY_DISPLAY_NAME} is added!
FlexField {Endeca Property Navigation Select|ENDECA_PROPERTY_NAVIGATION_SELECT} is added!
FlexField {Endeca Property Navigation Sorting|ENDECA_PROPERTY_NAVIGATION_SORTING} is added!
FlexField {Endeca Property Attribute Group|ENDECA_PROPERTY_ATTRIBUTE_GROUP} is added!
FlexField {Endeca Property IsValueSearchable|ENDECA_PROPERTY_IS_VALUE_SEARCHABLE} is added!
FlexField {Endeca Property Language|ENDECA_PROPERTY_LANGUAGE} is added!
FlexField {Endeca Property IsSingleAssign|ENDECA_PROPERTY_IS_SINGLE_ASSIGN} is added!
FlexField {Endeca Property Search Interface|ENDECA_PROPERTY_SEARCH_INTERFACE} is added!
FlexField {Endeca Property IsTextSearchable|ENDECA_PROPERTY_IS_TEXT_SEARCHABLE} is added!
FlexField {Endeca Property TextSearchWildcards|ENDECA_PROPERTY_TEXTSEARCHWILDCARDS} is added!
FlexField {Endeca Property ShowRecordCounts|ENDECA_PROPERTY_SHOW_RECORD_COUNTS} is added!
Mar 20, 2014 1:06:54 PM org.eclipse.persistence.default.connection
INFO: work-session logout successful
Mar 20, 2014 1:06:54 PM org.eclipse.persistence.default.connection
INFO: master-session logout successful

In ODI Studio

• Windows > Odi Security Navigator > SECURITY ADMIN
• Double click Column. On the Column tab, select Flexfields.

• an Endeca Server data server

• a Physical Schema
• a Logical Schema

• Create a mapping with the “Empty Dataset” check-box unchecked
• In the Logical View:
  • Verify the mapping properties
  • Drag the database table in the canvas
  • Drag the Endeca data store in the canvas
  • Verify in the target properties that the Integration Type is “Control Append”
  • Map the two by dragging a line between the two side-node

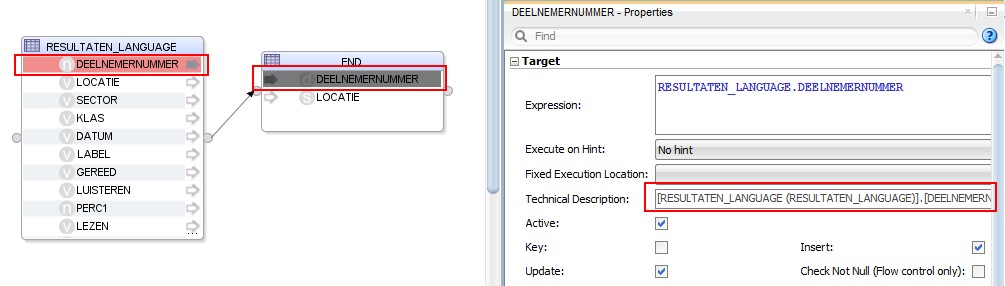

  • Verify the mapping by clicking on the target columns

• In the physical view:
  • Verify in the properties that the preset staging location is the database
  • Verify by clicking on the target the Knowledge Module and its options:

java.lang.Exception:
java.lang.Exception:
com.oracle.endeca.eidi.mdex.exception.ConnectionException:
com.google.protobuf.UninitializedMessageException:
Message missing required fields: spec

The primary key for datastore records is called a “spec”.

• See IKM SQL to Endeca Server 3.1.0 Documentation section
